Outlet 🧨 Pride Mobility Throttle Pot For The Pride Legend (SC300) & Maxima (SC900/SC940) 💯

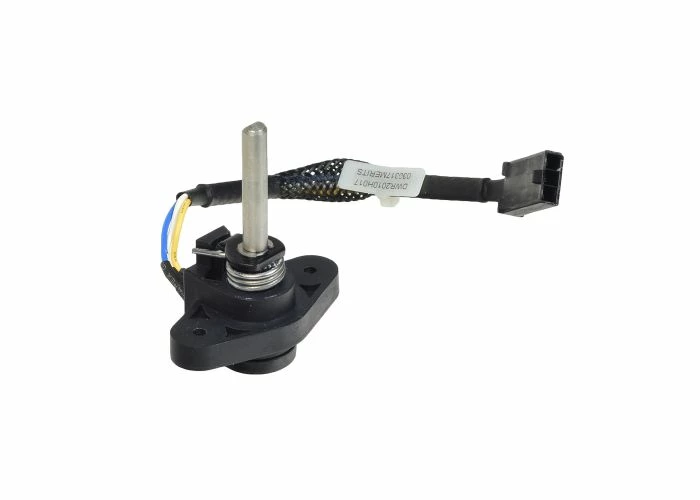

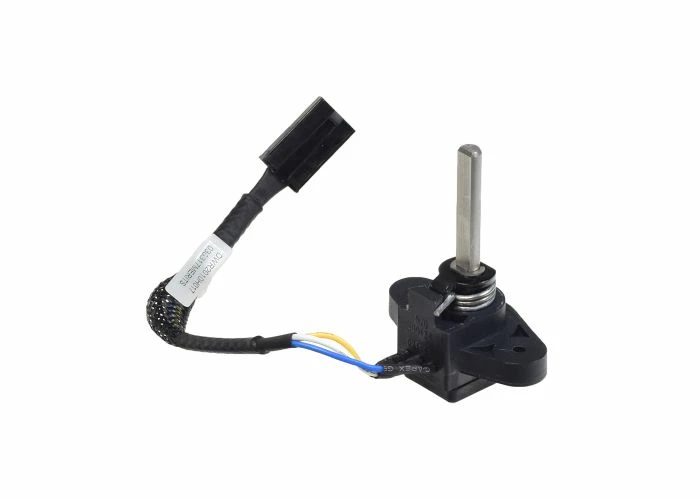

Here is the updated throttle pot for the Pride Legend (SC300) and Maxima (SC900/SC940) mobility scooters. This throttle potentiometer (also known as a throttle pot) mounts on the tiller assembly. Mounting must be vertically, with the shaft positioned up or down depending on your scooter’s throttle configuration.

Note: This throttle pot is serial number specific. It is only compatible with the number range of the following models:

Legend (SC300): Applicable to serial number S0930501001030 and after for 3-wheel Legend scooters, and serial number S1030501001030 and after for 4-wheel Legend scooters

Maxima (SC900/SC940): Applicable to serial number S5605313001M10 and subsequent for 3-wheel Maxima scooters, and serial number S5717513001M10 and after for 4-wheel Maxima scooter

If your Pride Legend or Maxima scooter has a serial number prior to those listed above you will want to order the 5K Ohm Throttle Potentiometer (Throttle Pot) for the Pride Laser, Legend, and Maxima.

⚠ WARNING California Residents: Proposition 65 Warning

Resistance: 5000 ohms
Rotation: 90 degrees left and right (forward & reverse)
Shaft Length: 1.35″
Shaft Diameter: 0.25″
Shaft Slot: Parallel to mounting bracket
Shaft Material: Stainless steel
Overall Width: 2.0″
Overall Height: 2.6″
Overall Depth: 1.31″
Mounting Hole Center to Center Distance: 1.575″
Mounting Hole Diameter: 0.135″
